Kavyas Tutorials: Generate Scenario and Scheduling job in odi

A Scenario is compiled or executable object like .exe; we can generate a scenario for packages, interfaces or variables, procedures.

Scenarios generated for procedures, interfaces or variables are single step scenarios that execute the procedure, interface or refresh the variable.

Scenario variables are variables used in the scenario that should be set when starting the scenario to parameterize its behavior.

Once generated, the scenario is stored inside the work repository. The scenario can be exported then imported to another repository and used in different contexts. A scenario can only be created from a development work repository, but can be imported into both development and execution work repositories.

Generating a scenario:

Go to designer navigator -> open project -> First folder ->interface_name then right click on the interface and select generate scenario.

Enter the name and version of the scenario.

If we have done some changed based on the requirement, then we need to regenerate the scenario else the previous version will gets executed, so we need to regenerate the scenario.

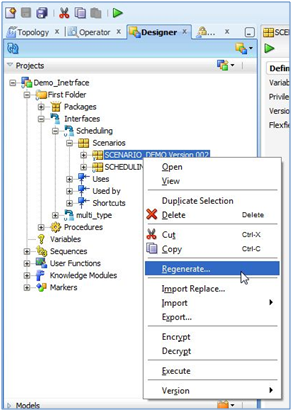

Regenerating the scenario: Right click on the scenario which is already been generated.

Generating group of scenarios:

When a set of packages, interfaces, procedures and variables grouped under a project or folder is finished and tested, you can generate the scenarios.

Steps:

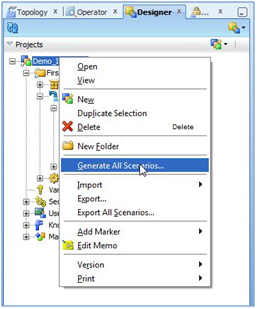

Right click on the project or folder containing group of objects then click generate all scenarios.

Then it will show one window to choose the mode of generation

Generation mode:

· Replace: Overwrites the last scenario version of each object with a new one but with the same ID, name and version. Sessions, scenario reports and schedules are deleted. If no scenario exists for an object, a scenario with version number 001 is created by default.

· Re-generate: Overwrites the last scenario version for each object with a new one with the same id, name and version. It preserves the schedule, sessions and scenario reports. If no scenario exists for an object, no scenario is created using this mode.

· Creation: Creates a new scenario for each object with the same name as the last scenario version and with an automatically incremented version number. If no scenario exists for an object, a scenario named after the object with version number 001 is created.

Scheduling:

In order to schedule any object first we need to create a scenario for that and then schedule the object.

Scenarios are mainly used to schedule the objects like interfaces, variables, procedures.

Expand the scenario->scheduling->Right click on the scheduling->new scheduling

Scheduling window will open, where we need to configure the scheduling. To schedule an object, agent is mandatory.

Definition:

Context: Context into which the scenario or Load Plan is started.

Agent: Agent executing the scenario or Load Plan.

Log Level: Level of logging information to retain

Status:

Active: The scheduling will be active when the agent is restarted or when the scheduling of the physical agent is updated.

Inactive: The schedule is not active and will not run.

Active for period: Activity range of the schedule. A schedule active for a period of time will only run within this given period.

Execution:

Frequency of execution option (annual, monthly,... simple). This option is completed by a set of options that depend on this main option.

Execution Cycle:

Properties	Description
None (Execute once)	The scenario or Load Plan is executed only one time.
Many times	The scenario or Load Plan is repeated several times. Maximum number of repetitions: The maximum number of times the scenario is repeated during the cycle. Maximum Cycle Duration: As soon as the maximum time is reached, the scenario is no longer restarted, and the cycle stops. Interval between repetitions: The downtime between each scenario execution.
Constraints	Allows limitations to be placed on one cycle iteration, in the event of a problem during execution. Number of Attempts on Failure: Maximum number of consecutive execution attempts for one iteration. Stop Execution After: Maximum execution time for one iteration. If this time is reached, the scenario or Load Plan is automatically stopped.

Variables: On the Variables tab, unselect Latest Value for variables for which you want to provide a Value. Only variables used in the scenario or Load Plan and flagged as parameters for this scenario or Load Plan appear in this tab.

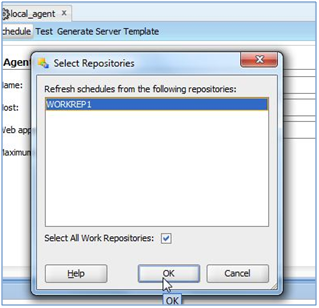

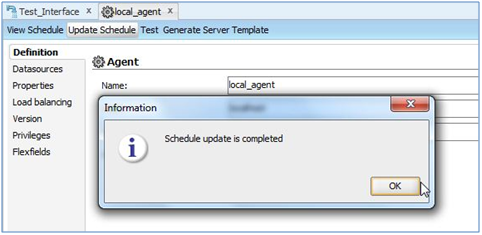

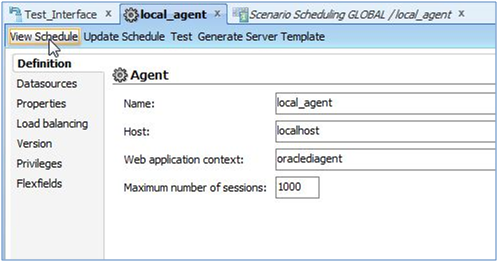

After defining the schedule, we need to update the agent which is accomplished with the schedule. So, go to topology->agents->double click the agent -> update the schedule
